Herschel SUMMIT 2600
360 Herschel SUMMIT 2600 Herschel Summit Herschel Summit Herschel Summit Herschel Summit Herschel Summit Blanc Herschel Summit Blanc Summit en restaurant Summit dans une conservatoire Consignes de montage SUMMIT summit-planview-schema2

Herschel Recommande

SUMMIT 2600W

Watts Taille de panneau (cm) Zone chauffée
2600 (sans télécommande) 140 x 16 x 4.5 9-16m2 Intérieur; 6-9m2 Extérieur

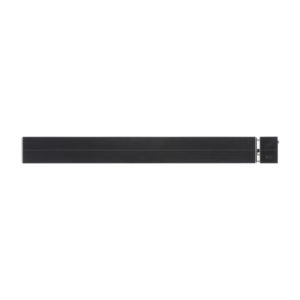

2600R (avec télécommande) 150 x 16 x 4.5 9-16m2 Intérieur; 6-9m2 Extérieur

de 599.00

Effacer

Livraison rapide
Installation Facile
Réduire vos frais de chauffage
Basse consommation d'énergie
2 yr Garantie
Zero-maintenance

Description

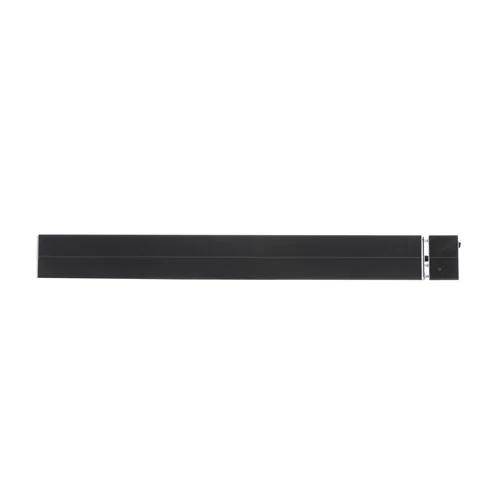

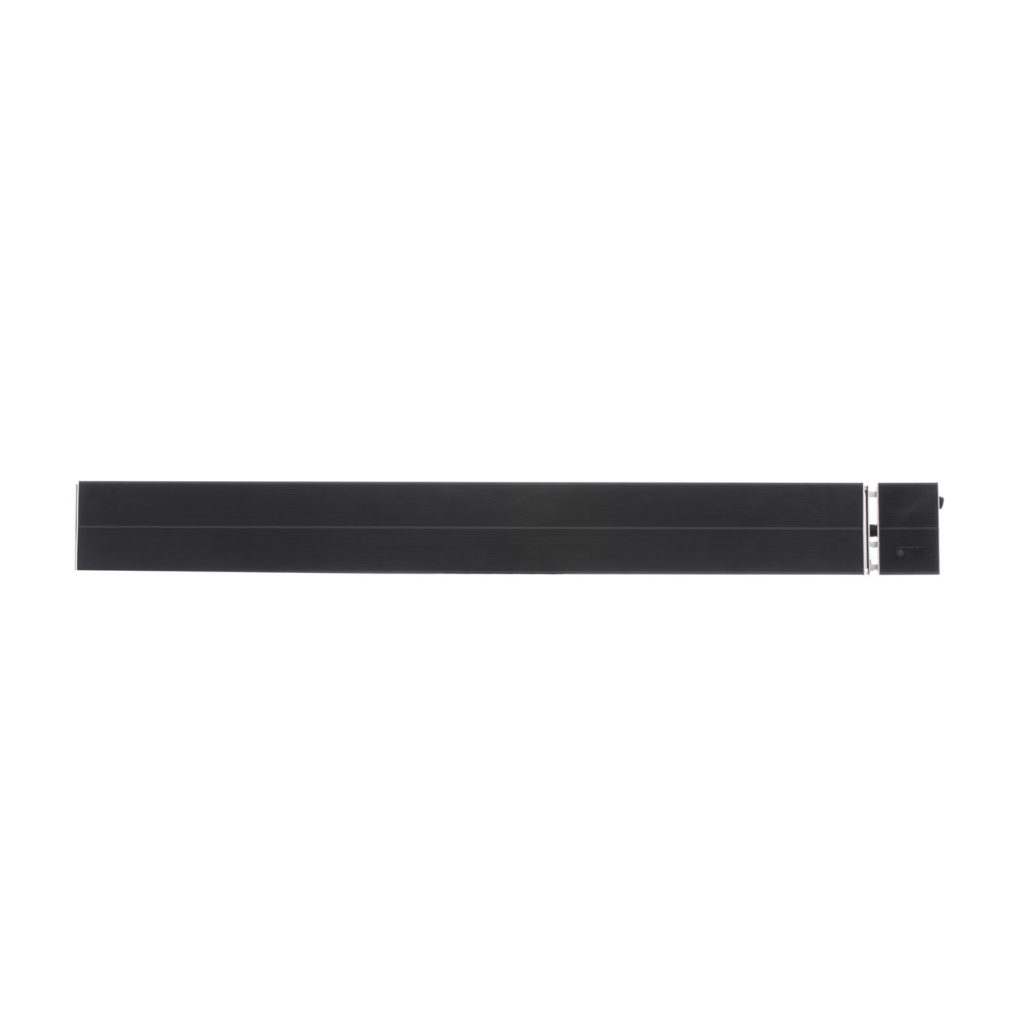

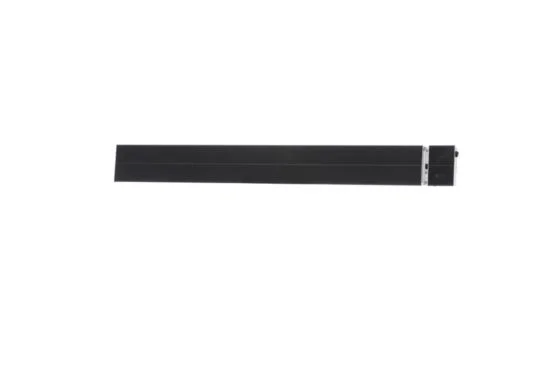

The elegant and powerful 2,6KW Herschel SUMMIT is a high quality heater. Power supply, without light and maintenance free, it offers a modern and design solution for heating zones in large indoor spaces. Thanks to its IP65 it can also heat sheltered outdoor spaces with little air movement.

Using its modular fixing lugs, the device can be installed very easily on the ceiling or on the wall. These swivel fixings for wall / or ceiling mounting as well as the mounting accessories are supplied with the device. For a remote suspension from the ceiling, a cable-based kit is available as an option.

Reliable, with a long service life, the Herschel SUMMIT is available with or without a remote control. The remote control version is delivered with two different power levels and can be controlled with a timer, up to 24 hours.

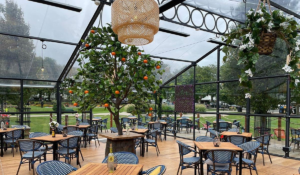

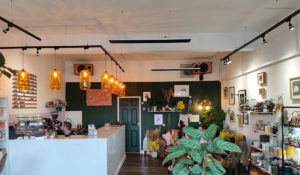

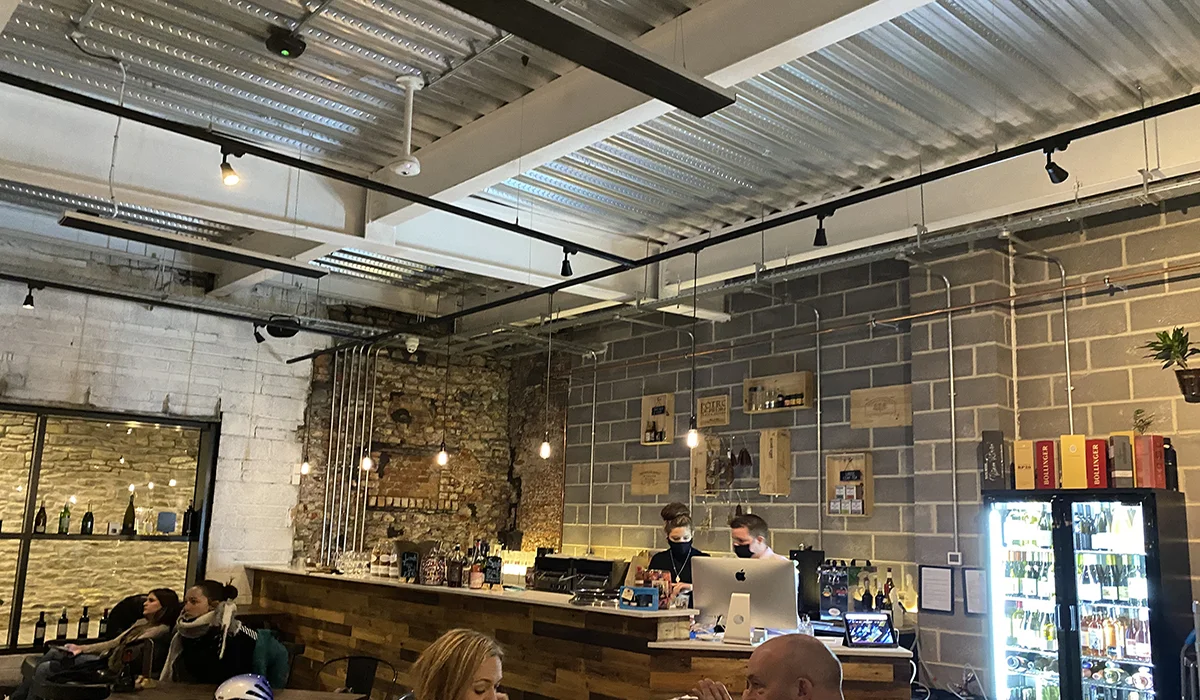

The far infrared radiation produced by the Herschel SUMMIT directly heats people, without first heating the air, thus producing comfortable and soft heat. The Herschel SUMMIT heating element guarantees a warm-up time of less than 10 minutes, the ideal solution to stay warm during cool evenings outdoors or to heat difficult areas in large indoor spaces such as shops, cafes, restaurants and bars. Quiet in operation and without light, it is a discreet, efficient and ecological way to ensure clean, comfortable and efficient heat.
For specific projects, please consult us for a detailed evaluation of the workstations.

Click here to download the data sheet .

Click here to download the installation manual .

Power requirements:

Nominal voltage (V) 220-240V 50 / 60Hz
Rated current (A) 11.3
Fuse / Switch (A) 13



Heated surface: inside Outside
Heated surface @ maximum power 9-16m 2 6-9m 2



Nominal power:

Heating element:

Transmitter:

Body:

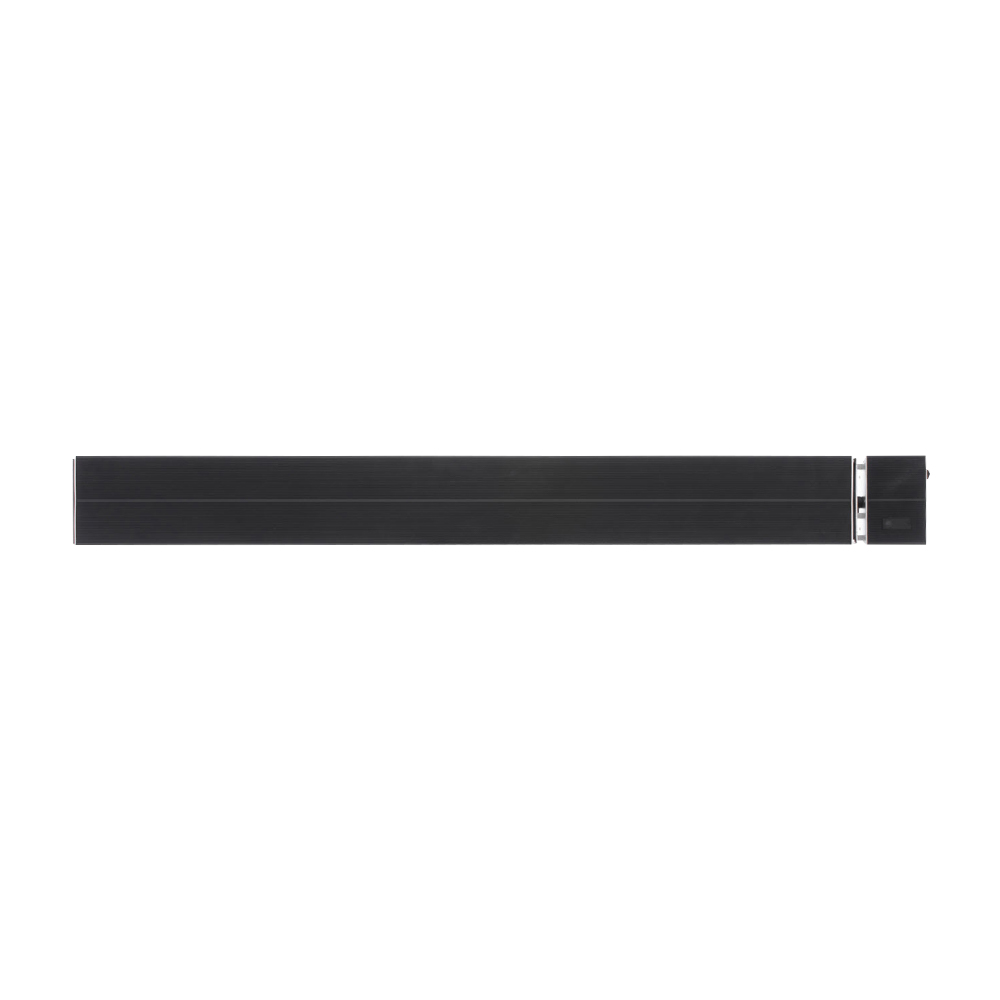

Dimensions 2600R:

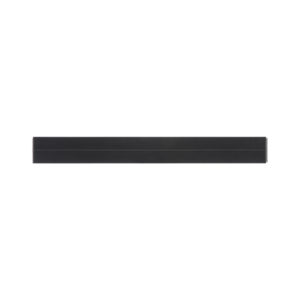

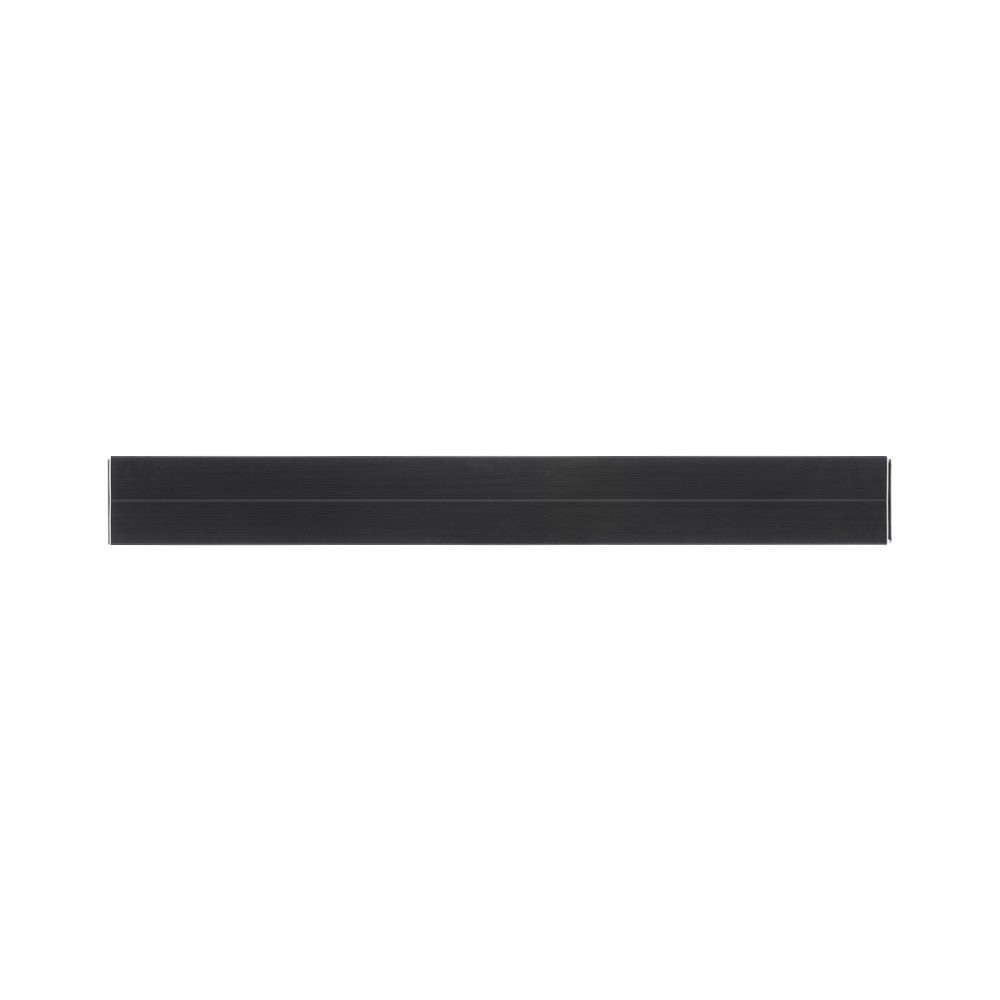

Dimensions 2600:

Remote control:



Warm up:

Useful wavelength:

Weight:

Guarantee:

Cable:

Protection:

2600W

Herschel Kanthal AF

Structured Aluminum surface with Ge IR enhancing coating

Extruded and anodized aluminum

150 x 16 x 4.5 cm (with remote control)

140 x 16 x 4.5 cm (without remote control)

2 power levels (100% & 50%) &

24 hour timer (1 hour increments)

<10 Minutes

3 – 10µm

7kg (without remote control) 7.5kg (with remote control)

2 years (excludes remote control)

2m

IP65

Quality and safety

Summit Certificacion

IEC 60335-1; 60335-2-30

EMC

Compliant

Warranty: 24 months (excludes remote control)
